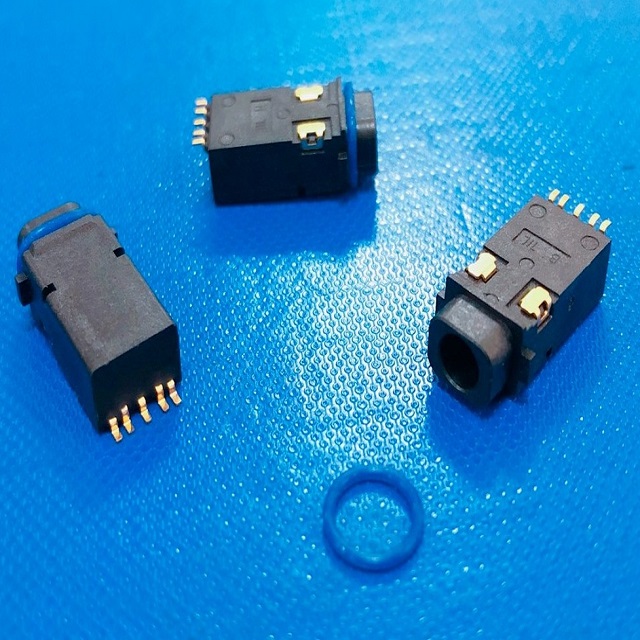

3.5mm DC Jack Waterproof Connector
A DC Jack (or DC plug, for one common type of connector) is an electrical connector for supplying direct current (DC) power.
Though USB powered devices are more and more common, DC power plugs are still a serviceable standard in powering smaller appliances. They can typically be used with certain portable computers, electronic instruments, and sound systems.
Item No. : WP-035-01A
Description
| Housing Material | PA9T UL94V-0 |
| Earth Spring Material | Ti-Cu t=0.20 MB: Ni40u” Au0.8u plated |
| Ring Sprong Material | Ti-Cu t=0.20 MB: Ni40u” Au0.8u plated |
| Tip Spring Material | Ti-Cu t=0.20 MB: Ni40u” Au0.8u plated |
| Terminal Material | C2680 t=0.20 MB: Ni40u” Au0.8u plated |
| Bond Material | Epoxy |
| O-ring Material | Silicone |
| Insulation Resistance | a voltage of 500V D.C. shall be applied to the terminals, after which measurement shall be made. A gauge for the measurement shall be used the insulated gauge. |
| Contact Resistance | 30ma or less |
| Voltage Proof | 500V AC for 1 minute |
| Durability | 5,000 Insertion/Removal Cycles (min.) |
| Insertion Force | 0.4~2.0Kgf |
| Withdrawal Force | 0.4~2.0Kgf |
| Waterproof | this product conforms to JIS standard IP67 by waterproof jack |
| Using Plug | 3.5mm, 4-pole stereo earphones (LCH/RCH/GND/MIC) provided that they conform to JIS Cc6560 |
| Housing Strength | 50N Max. |
