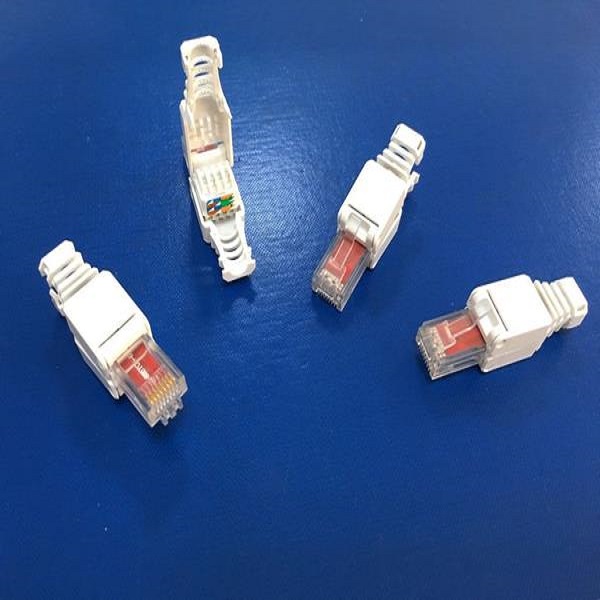

CAT.6 Toolless Modular Plug

8P8C connectors are commonly used in computer networking applications, where interconnecting cables are terminated at each end with an 8P8C modular plug, wired according to TIA/EIA standards.

Item No. : RJU06-88-WH

Features :

  • Modular Plug for Network
  • OEM & ODM orders are welcomed to meet your customized requirement
Category:

Description

8×8 8 contact positions, all 8 populated with contacts
Plastic Material PC UL94V-0
IDC Material PC
Contact Material Phosphor Bronze with gold plated
Contact Life 750 Times Min.
IDC Life 250 Times Min.
Color White
Wire Type 23AWG ~ 24AWG
Contact Resistance 20M Ohm Max.
Insulation Resistance 250M ohm at 500V DC
Dielectric Withstanding Voltage DC 1000V AC 700V RMS 60Hz

Download pdf file
