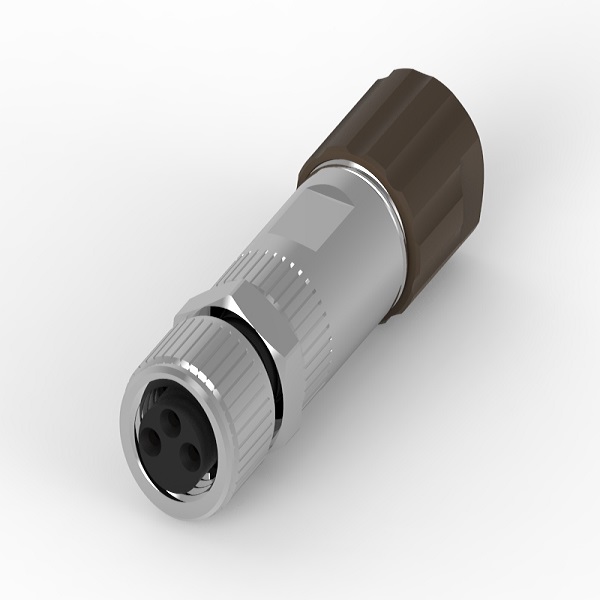

M8 3Pin Female Field Wireable Connector

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged and they are typically used in harsh environments. Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.

Item No. : WP-03F2-84-11

Features :

  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backward compatible
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for  MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 3 Pins
Connector Gender Female Connector
Coding A code
Orientation Straight
Wire Termination Soldering
Housing Material A PBT UL94V-0, Black
Contact Material A Brass with gold flash
Nut Material A Aluminium Alloy with Nickel plated
O-ring Material A EPDM, Black
Shell Material A Brass with Nickel plated
Shell Material B Aluminium Alloy with Nickel plated
Main Body Material B Aluminium Alloy with Nickel plated
Gland Cage Material B PA66, White
Gland Nut Material B PPS, Brown
Rated Current 3A
Rated Voltage 60V
Waterproof Rating IP67
Operation Temperature -20℃ ~ 85℃

Download pdf file
