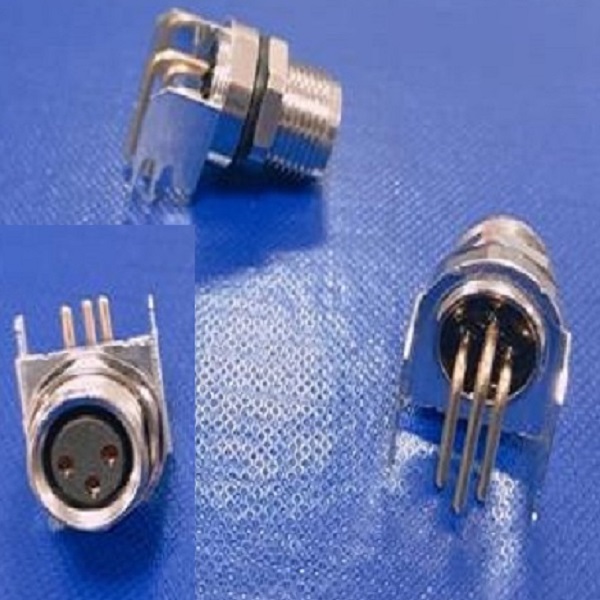

M8 3Pin Female 90° Front Panel Mount Connector

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged and they are typically used in harsh environments. Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.

Item No. : WP-03F3-01-11

Features :

  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backward compatible
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 3 Pins
Connector Gender Female Connector
Coding A code
Connection Type Panel Mount, Front Fastened
Orientation Straight
Wire Termination PCB Soldering
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated, underplate Nickel
Nut Material Brass with Nickel plated
Shell Material Brass with Nickel plated
O-ring Material NBR
Ground Material Phosphor Bronze with Bright Tin plated
Rated Current 4A
Rated Voltage 30V
Waterproof Rating IP67 when Un-mated
Operation Temperature -40℃ ~ 85℃
