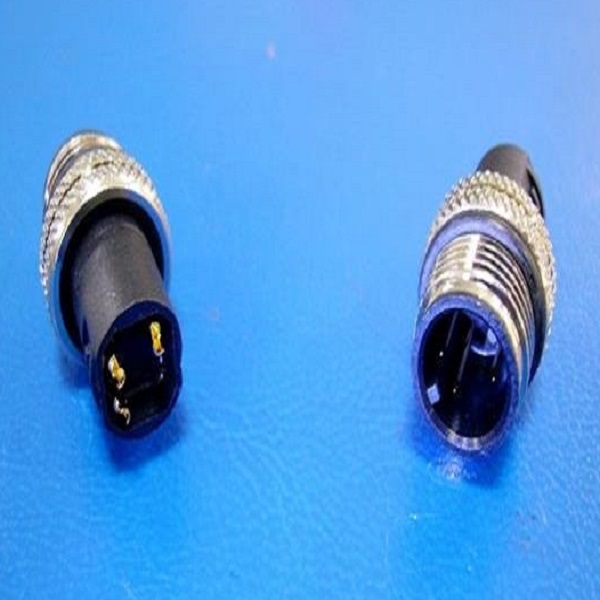

M12 A-code 3Pin Male Connector for Cable Assembly

The standard M12 A-coded is widely used for sensors, DC power, and 1 Gbit Ethernet Applications.

Item No. : WP-03M2-09

Features:

  • M series Circular Connector for Cable Assembly
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for small MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 3 Pins
Connector Gender Male Connector
Coding A code
Orientation Straight
Wire Termination Soldering
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Nut Material Brass with Nickel plated
O-ring Material EPDM, Black
Epoxy Base Material EF400A&EF400B, Black
Rated Current 5A
Rated Voltage 125V
Waterproof Rating IP67
Operation Temperature -40℃ ~ 85℃

Download pdf file
