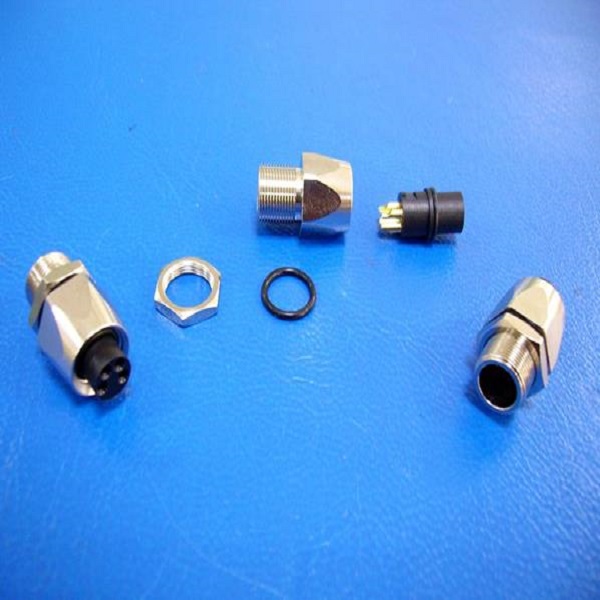

M8 4Pin Female Rear Panel Mount Connector
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged and they are typically used in harsh environments. Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.
Item No. : WP-04F2-07-11
Features :
- Alternative mount arrangements for solder cup or PCB
- Panel Mount and distribution version available
- Shield reliable
- Quick and secure connection
- Backward compatible
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Female Connector |
| Coding | A code |
| Connection Type | Panel Mount, Rear Fastened |
| Orientation | Straight |
| Wire Termination | PCB Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold flash |
| Nut Material | Brass with Nickel plated |
| Shell Material | Brass with Nickel plated |
| O-ring Material | EPDM, Black |
| Rated Current | 5A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -20℃ ~ 85℃ |
