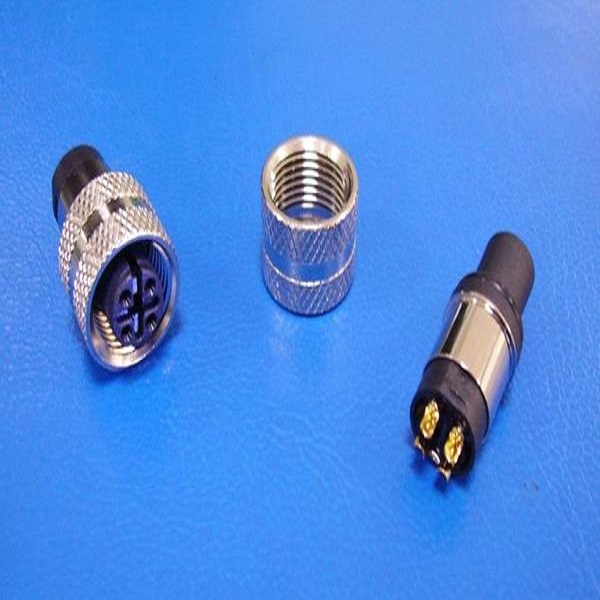

M12 A-code 4Pin Female Shielded Connector for Cable Assembly

M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

Item No. : WP-04F2-104

Features:

  • M series Circular Connector for Cable Assembly
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for small MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 4 Pins
Connector Gender Female Connector
Coding A code
Orientation Straight
Wire Termination Soldering
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Shell Material Brass with Nickel plated
Nut Material Brass with Nickel plated
O-ring Material EPDM
Rated Current 5A
Rated Voltage 125V
Waterproof Rating IP67
Operation Temperature -40℃ ~ 85℃

Download pdf file
