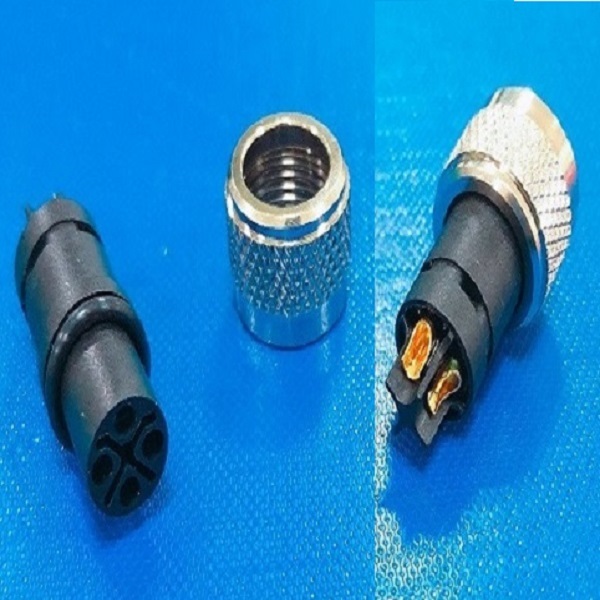

M12 S-code 4Pin Female Connector

M12 S-Code connectors are used for supplying power supply voltages to power applications.  With an operating voltage of 630V they are capable of delivering 12 Amps through the connector.

The S-Code is available as a moulded connector, field attachable, and receptacle.  They are sealed waterproof to IP68 for the moulded connectors and IP67 for the field wireable versions.

Item No. : WP-04F2-250-11

Features:

  • X-coded connectors support higher bandwidth needs of up to 10 Gb/s
  • A,B,D,X,L,S,T coding available
  • Easily installable connector system
  • Environment protection IP67 and IP68
  • Connector ranges include male and female connectors in 2, 3, 4, 5, 8, and 12 positions and Y Connectors
  • All connectors also available with silver-plated contacts for higher conductivity
  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backward compatible

Description

Download pdf file

No. of Contacts 4 Pins
Connector Gender Female Connector
Coding S code
Orientation Straight
Wire Termination Soldering
Housing Material PA66 UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Nut Material Brass with Nickel plated
O-ring Material EPDM
Rated Current 12A
Rated Voltage 630V
Waterproof Rating IP67/IP68
Operation Temperature -40℃ ~ 105℃
