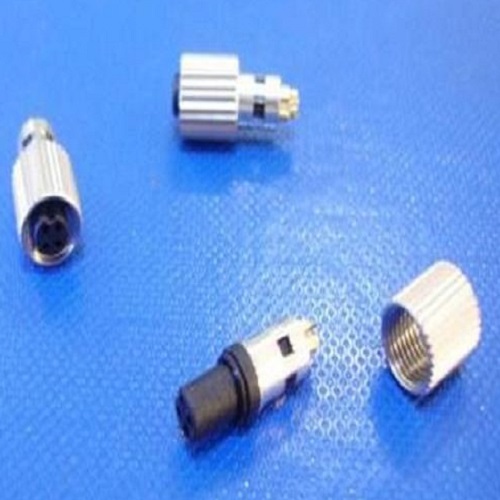

M5 4Pin Female Shielded Connector

The most well-knit connector type in the M series range, our M5 connectors come in straight and angled forms with overmolded cable connector options and a variety of panel mount receptacles. This compact type of connector is suited to automotive, process control, commercial electronics & instrumentation application which rely on reliable and robust miniature sensors.

Item No. : WP-04F2-56

Features :

  • M series Circular Connector for Cable Assembly
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for small MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 4 Pins
Connector Gender Female
Coding A code
Orientation Straight
Wire Termination Soldering
Housing Material TPU, Black
Contact Material Phosphor Bronze with gold flash
Nut Material Brass with Satin Nickel Plated
O-ring Material NBR, Black
Shell Material Brass with Bright Tin plated
Rated Current 1A
Rated Voltage 60V
Waterproof Rating IP67
Operation Temperature -20℃ ~ 85℃

Download pdf file
