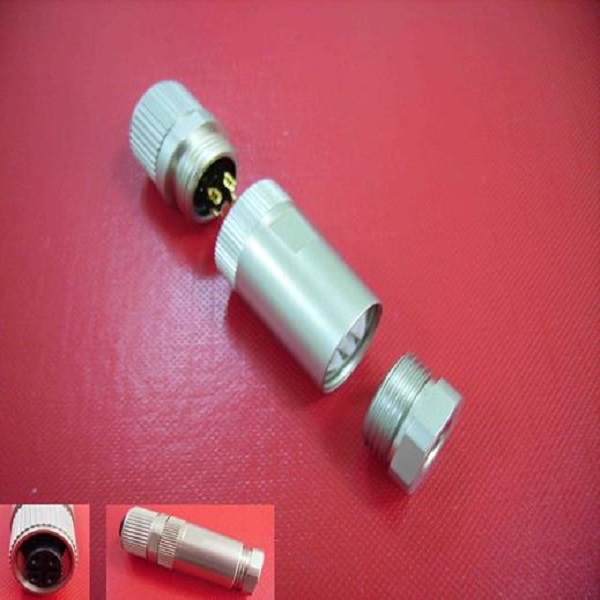

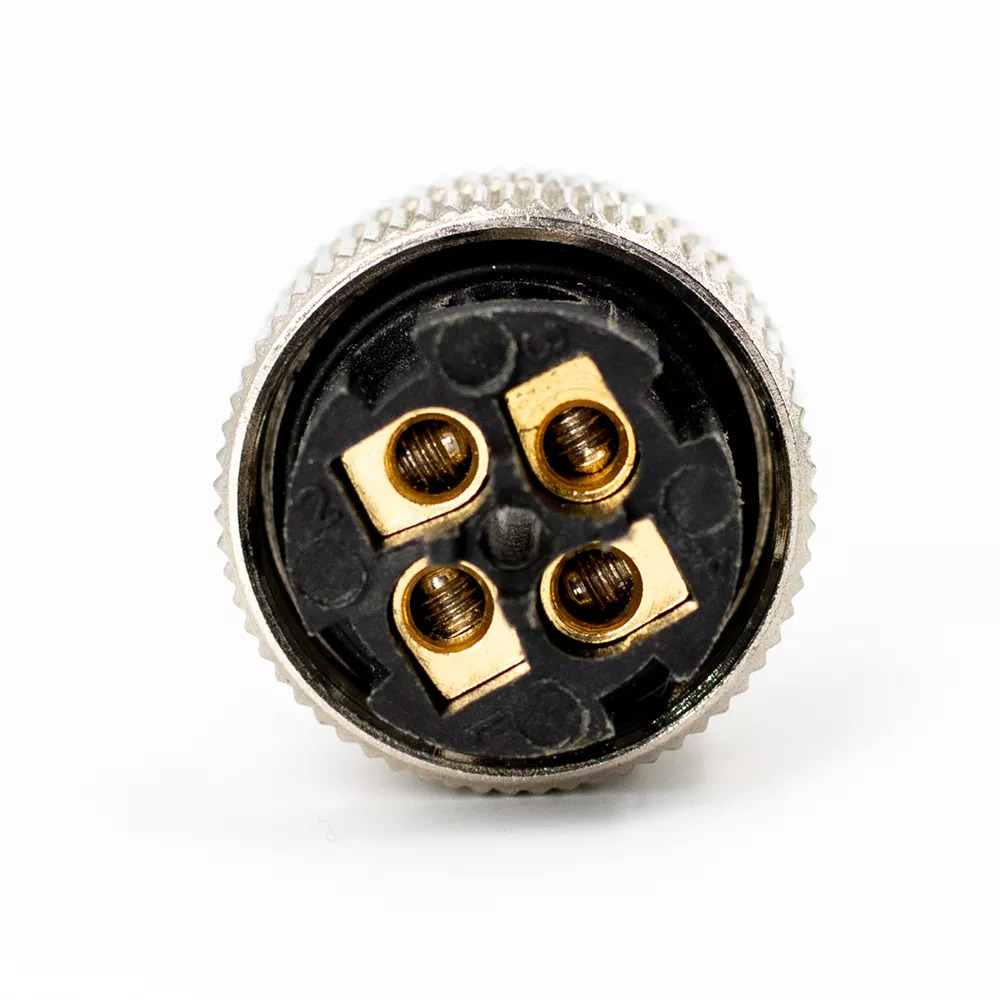

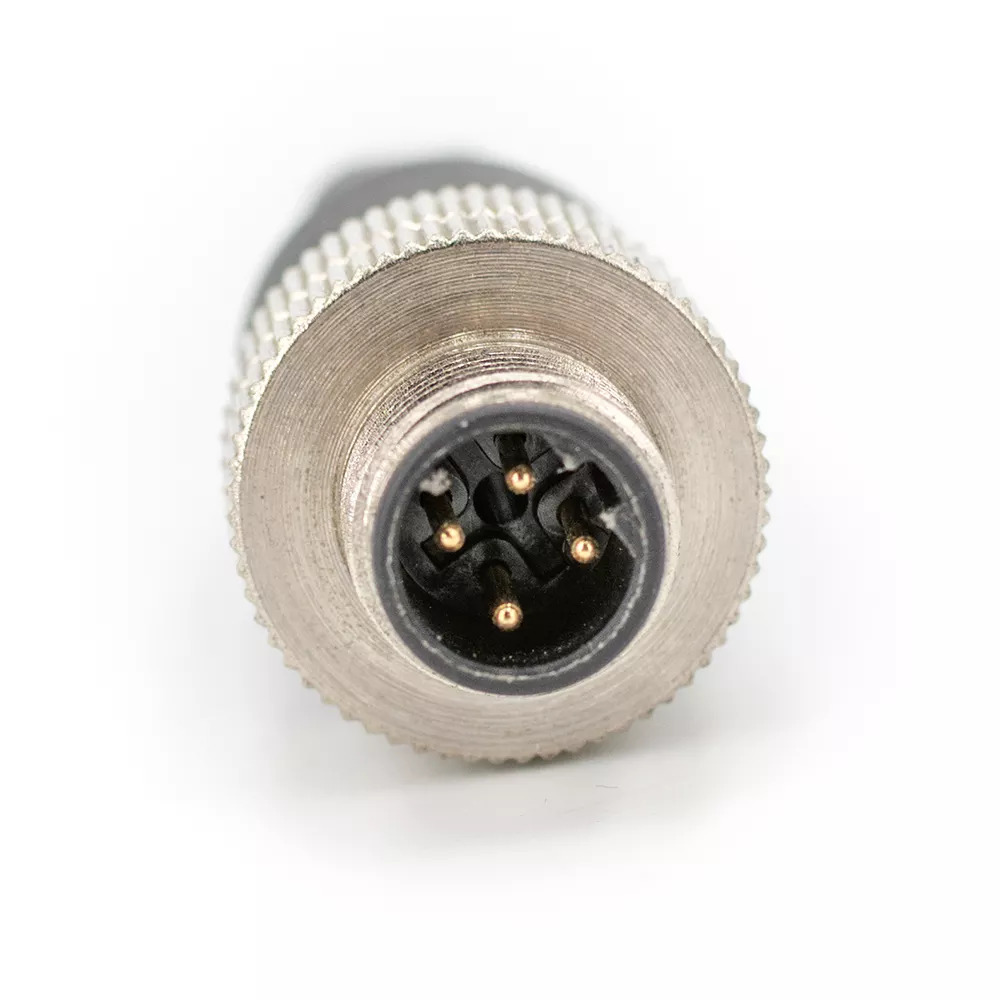

M12 A-code 4Pin Female Field Wireable Connector
Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.
Item No. : WP-04F2-62
- M series Circular Field Wireable Connector
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Female Connector |
| Coding | A code |
| Orientation | Straight |
| Wire Termination | Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold flash under plate Nickel |
| Shell Material | Aluminium Alloy with Sating Ni plated |
| Nut Material | Aluminium Alloy with Sating Ni plated |
| O-ring Material | EPDM, Black |
| Epoxy Base Material | EF400A&EF400B, Black |
| Rated Current | 5A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -20℃ ~ 85℃ |
Delicate Craftsmanship Makes Connections More Secure
Thickened pins with long-life Copper-nickel material make data transmission more secure. Wearing high resistance Threads on the M12 connector makes it easy to plug in tightly combined, and not easy to fall off.
Safe and Reliable Meet the Safety Standards
Brass gold-plated contacts with excellent electrical conductivity, a Fixed key position to prevent blindness, and MIS insertion with Strong waterproof performance.
