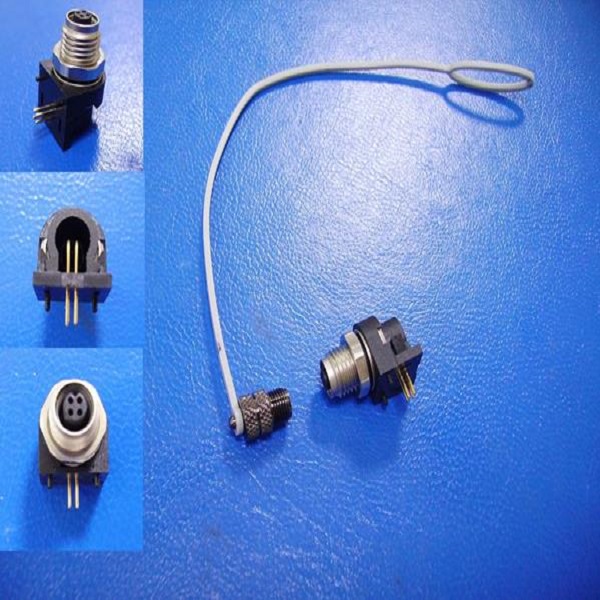

M5 4Pin Female 90° Panel Mount Connector
The most well-knit connector type in the M series range, our M5 connectors come in straight and angled forms with overmolded cable connector options and a variety of panel mount receptacles. This compact type of connector is suited to automotive, process control, commercial electronics & instrumentation application which rely on reliable and robust miniature sensors.
Item No. : WP-04F2-63
Features :
- M series Circular Connector for PCB
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Female Connector |
| Coding | A code |
| Connection Type | Panel Mount, Front Fastened |
| Orientation | Right Angle |
| Wire Termination | PCB Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold plated |
| Screw Nut Material | Brass with Nickel plated |
| Shell Material | PBT |
| O-ring | NBR, Black |
| Epoxy Base | EF400A & EF400B, black |
