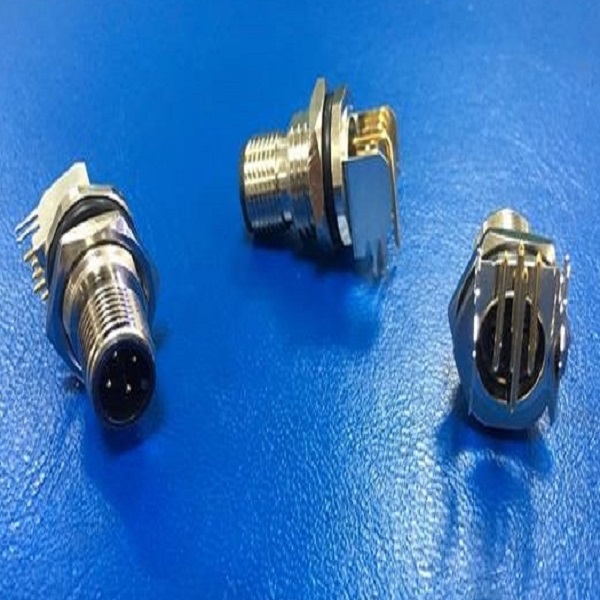

M12 A-code 4Pin Male 90° Front Panel Mount Connector

Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

Item No. : WP-04M2-107-11

Features :

  • M series Circular Connector for PCB mounting
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for small MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 4 Pins
Connector Gender Male Connector
Coding A code
Orientation Right Angle
Wire Termination Soldering
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Shell Material Brass with Nickel plated
Nut Material Brass with Nickel plated
O-ring Material EPDM
Ground Material Phosphor Bronze with Bright Tin plated
Rated Current 4A
Rated Voltage 250V
Waterproof Rating IP68 when un-mated
Operation Temperature -40℃ ~ 85℃

Download pdf file
