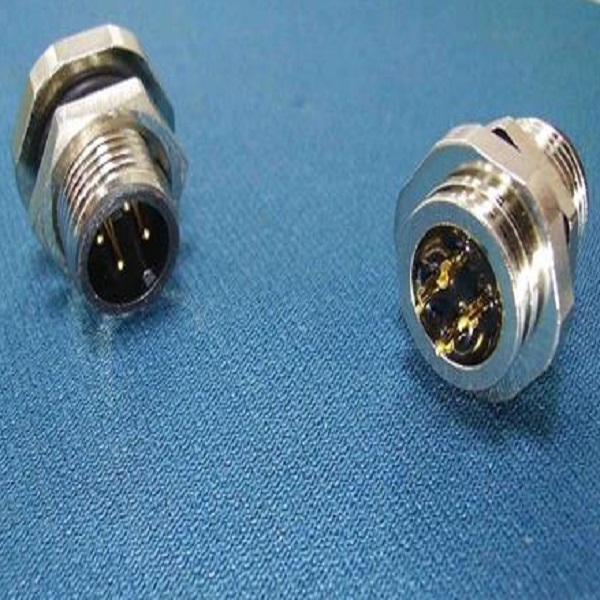

M12 A-code 4Pin Male Front Panel Mount Connector

Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

Item No. : WP-04M2-12

Features :

  • M series Circular Connector for PCB
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for small MOQ order
  • OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 4 Pins
Connector Gender Male Connector
Coding A code
Orientation Straight
Wire Termination Soldering
Housing Material PBT UL94V-0, Black
Contact Material Copper Alloy with gold plating over Nickel
Shell Material Copper Alloy with Nickel plated
Nut Material Copper Alloy with Nickel plated
O-ring Material EPDM, Black
Epoxy Base Material EF400A&EF400B, Black
Rated Current 5A
Rated Voltage 125V
Waterproof Rating IP67
Operation Temperature -40℃ ~ 85℃

Download pdf file
