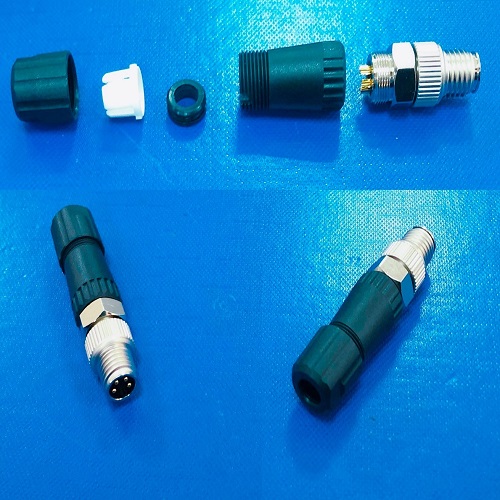

M8 4Pin Male Field Wireable Connector
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged and they are typically used in harsh environments. Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.
Item No. : WP-04M2-167-11
Features :
- Alternative mount arrangements for solder cup or PCB
- Panel Mount and distribution version available
- Shield reliable
- Quick and secure connection
- Backward compatible
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
Connector Housing Material | PBT UL94V-0, Black |
Contact Material | Brass with gold flash under plate Nickel |
Nut Material | Aluminium Alloy with Nickel plated |
Shell A Material | Brass with Nickel plated |
Shell B Material | Aluminium Alloy with Nickel plated |
Main Body Material | PA66, Black |
O-Ring A Material | Silicone |
O-Ring B Material | Silicon, Black |
Gland Cage Material | PA66, White |
Gland Nut Material | PA66, Black |
Connector Rated Current | 3A |
Connector Rated Voltage | 30V |
Connector Waterproof Rating | IP67 |
Operation Temperature | -20℃ ~ 85℃ |
