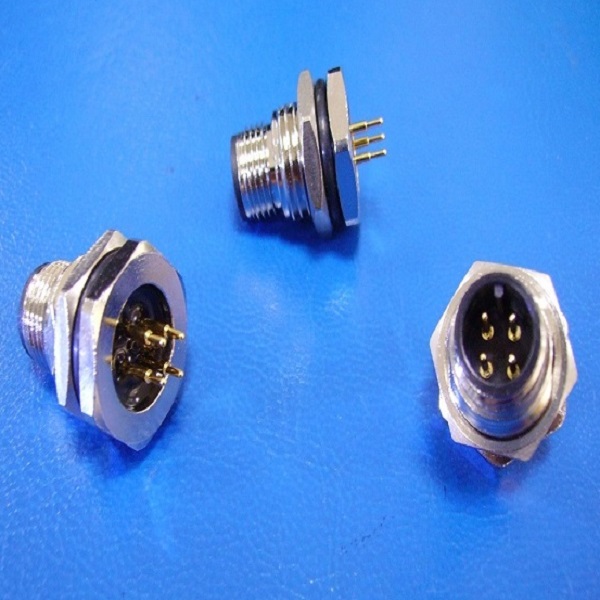

M12 A-code 4Pin Male Front Panel Mount Connector
Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.
Item No. : WP-04M2-66
Features :
- M series Circular Connector for PCB mounting
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Male Connector |
| Coding | A code |
| Orientation | Straight |
| Wire Termination | Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold plated under plate Nickel |
| Shell Material | Brass with Nickel plated |
| Nut Material | Brass with Nickel plated |
| O-ring Material | EPDM, Black |
| Rated Current | 5A |
| Rated Voltage | 125V |
| Waterproof Rating | IP68 when un-mated |
| Operation Temperature | -40℃ ~ 85℃ |
