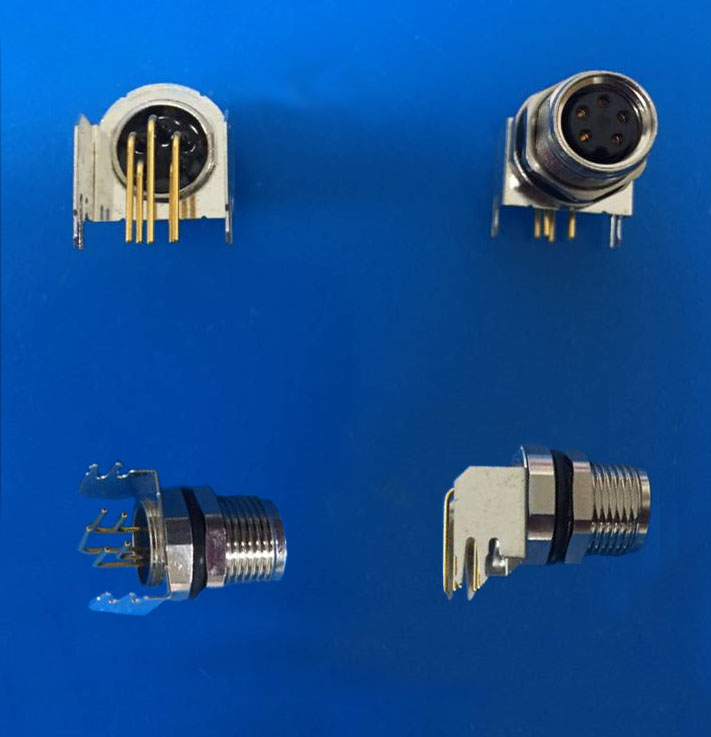

M8 5Pin Female 90° Panel Mount Connector

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged and they are typically used in harsh environments. Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.

Item No. : WP-05F3-02-11

Features :

  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backward compatible
  • Degree of protection up to IP67 for safe use in harsh environment
  • Acceptable for small MOQ order
    OEM & ODM orders are welcomed to meet your customized requirement

Description

No. of Contacts 5 Pins
Connector Gender Female Connector
Coding A code
Connection Type Panel Mount, Front Fastened
Orientation Right Angled
Wire Termination PCB DIP Type
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated
Nut Material Brass with Nickel plated
Shell Material Brass with Nickel plated
O-ring Material NBR
Ground Material Phosphor Bronze
Rated Current 2A
Rated Voltage 30V
Waterproof Rating IP67
Operation Temperature -40℃ ~ 85℃

Download pdf file
