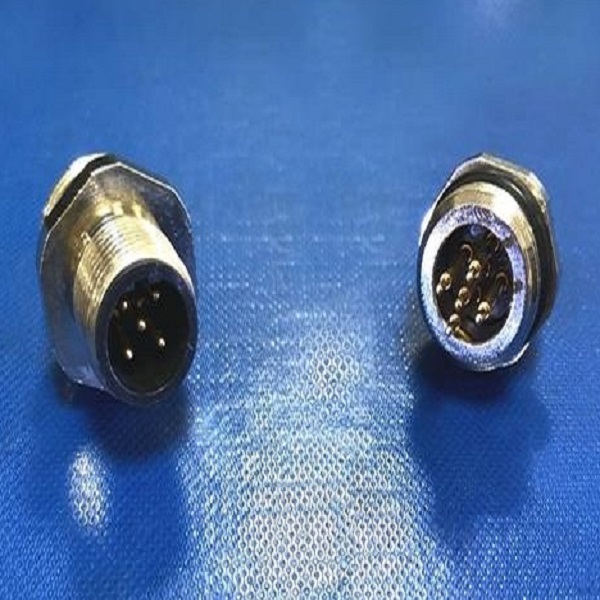

M12 B-code 5Pin Male Panel Mount Connector

Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

Item No. : WP-05M2-10

Features:

  • X-coded connectors support higher bandwidth needs of up to 10 Gb/s
  • A,B,D,X,L,S,T coding available
  • Easily installable connector system
  • Environment protection IP67 and IP68
  • Connector ranges include male and female connectors in 2, 3, 4, 5, 8, and 12 positions and Y Connectors
  • All connectors also available with silver-plated contacts for higher conductivity
  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backwards compatible

Description

No. of Contacts 5 Pins
Connector Gender Male Connector
Coding B code
Orientation Straight
Wire Termination Soldering
Housing Material Thermoplastic UL94V-0, Black
Contact Material Brass with gold plated
Shell Material Brass with Nickel plated
Rated Current 2A
Dielectric Strength 500V AC Min.
Insulation Resistance 1000 MegaOhms Min.
Waterproof Rating IP68
Operation Temperature -20℃ ~ 105℃

Download pdf file
