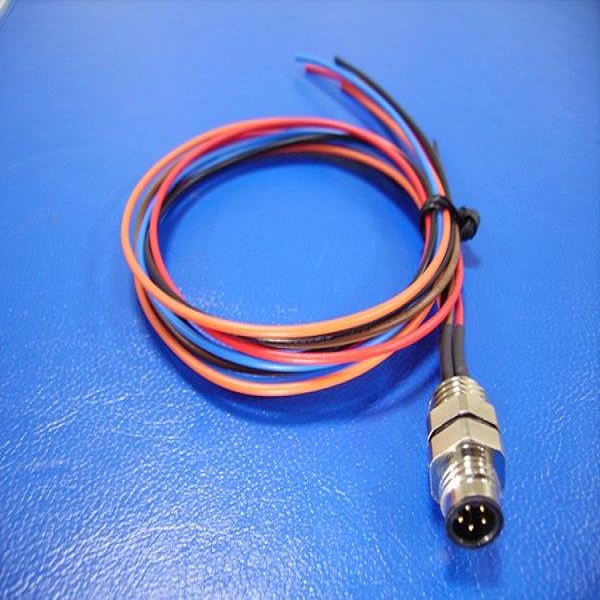

M9 5Pin Male Connector Cable Assembly
M9 circular connectors are the ideal connectivity solution for industrial automation technologies that require fast, secure, and reliable connections with a high degree of environmental protection.
Item No. : WP-05M2-35-0.5M
Features :
- M series Circular Connector Cable Assembly
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 5 Pins |
| Connector Gender | Male Connector |
| Coding | A code |
| Orientation | Straight |
| Wire Termination | Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold plated, underplate Nickel |
| Nut Material | Brass with Nickel plated |
| O-ring Material | EPDM, Black |
| Shell Material | Brass with Nickel plated |
| Rated Current | 5A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -20℃ ~ 85℃ |
| Wire Guage | 24AWG UL1007 |
| Cable Material | PVC |
