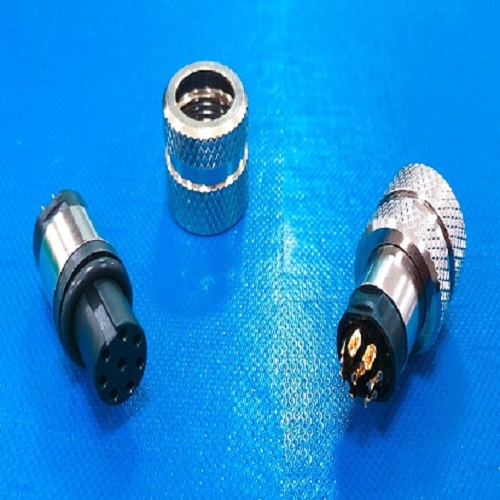

M12 A-code 8Pin Female Shielded Connector

Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

Item No. : WP-08F2-42

Features:

  • X-coded connectors support higher bandwidth needs of up to 10 Gb/s
  • A,B,D,X,L,S,T coding available
  • Easily installable connector system
  • Environment protection IP67 and IP68
  • Connector ranges include male and female connectors in 2, 3, 4, 5, 8 and 12 positions and Y Connectors
  • All connectors also available with silver plated contacts for higher conductivity
  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backwards compatible

Description

No. of Contacts 8 Pins
Coding A code
Connector Gender Female Connector
Orientation Straight
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Nut Material Brass with Nickel plated
O-ring Material EPDM, Black
Rated Current 5A
Rated Voltage 125V
Waterproof Rating IP67
Operation Temperature -40℃ ~ 85℃

Download pdf file
