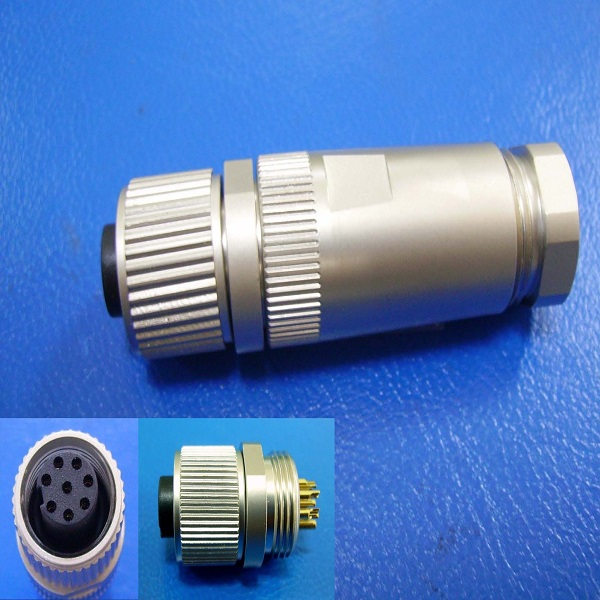

M12 A-code 8Pin Female Field Wireable Connector

The M12 field wireable connectors are used to build custom patch cables. Provide a quick disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.

Item No.: WP-08F2-33

Description

No. of Contacts 8 Pins
Connector Gender Female Connector
Coding A code
Orientation Straight
Wire Termination Soldering
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold flash under plate Nickel
Shell Material Aluminium Alloy with Sating Ni plated
Nut Material Aluminium Alloy with Sating Ni plated
O-ring Material EPDM, Black
Epoxy Base Material EF400A&EF400B, Black
Rated Current 5A
Rated Voltage 125V
Waterproof Rating IP67
Operation Temperature -20℃ ~ 85℃



Download pdf file

M12 field wireable connector

Delicate Craftsmanship Makes Connections More Secure

Thickened pins with long-life Copper-nickel material make data transmission more secure.  Wearing high resistance Threads on the M12 connector makes it easy to plug in tightly combined, and not easy to fall off.







insight of m12 field wireable connector

Safe and Reliable Meet the Safety Standards

Brass gold-plated contacts with excellent electrical conductivity, a Fixed key position to prevent blindness, and MIS insertion with Strong waterproof performance.
