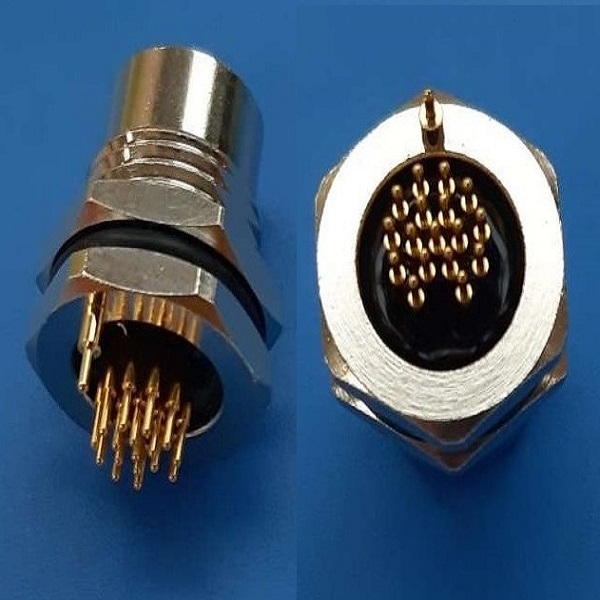

M12 A-code 17Pin Female Front Panel Mount PCB Type Connector with Ground

M12 connector provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

Item No. : WP-17F3-02-11

Features:

  • A, B, D, X, L, S, T coding available
  • Easy installable connector system
  • Environment protection IP67 and IP68
  • Connector ranges include male and female connectors in 2, 3, 4, 5, 8, 12 , and 17 positions
  • All connectors are available with gold-plated contacts for higher conductivity
  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Shield reliable
  • Quick and secure connection
  • Backward compatible

Description

No. of Contacts 17 Pins
Coding A code
Connector Gender Female Connector
Orientation Straight
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Nut Material Brass with Nickel plated
Shell Material Brass with Nickel plated
O-ring Material EPDM

Rated Current 1.5A
Rated Voltage 30V
Waterproof Rating IP67
Operation Temperature -40℃ ~ 85℃

Download pdf file
