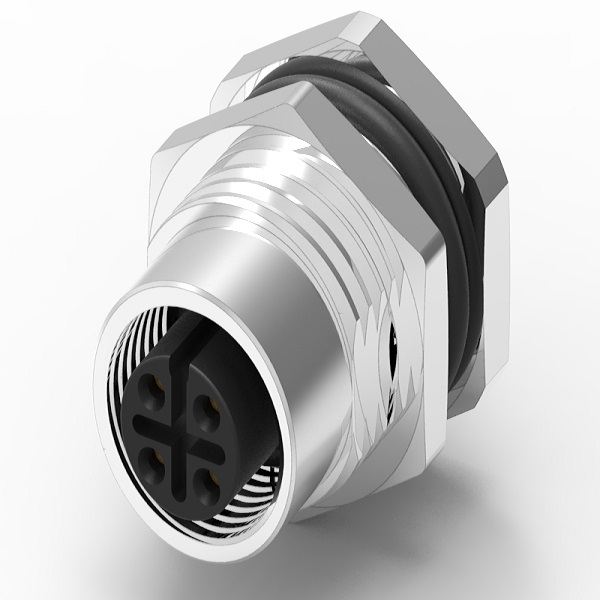

M12 A-code 4Pin Female Front Panel Mount PCB type Connector with Ground
M12 connector provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.
Item No. : WP-04F3-16-11
Features:
- A, B, D, X, L, S, T coding available
- The easy installable connector system
- Environment protection IP67 and IP68
- Connector ranges include male and female connectors in 2, 3, 4, 5, 8, 12 , and 17 positions
Description
| No. of Contacts | 4 Pins |
| Coding | A code |
| Connector Gender | Female Connector |
| Orientation | Straight |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold plated under plate Nickel |
| Nut Material | Brass with Nickel plated |
| Shell Material | Brass with Nickel plated |
| O-ring Material | EPDM |
| Rated Current | 4A |
| Rated Voltage | 250V |
| Waterproof Rating | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
