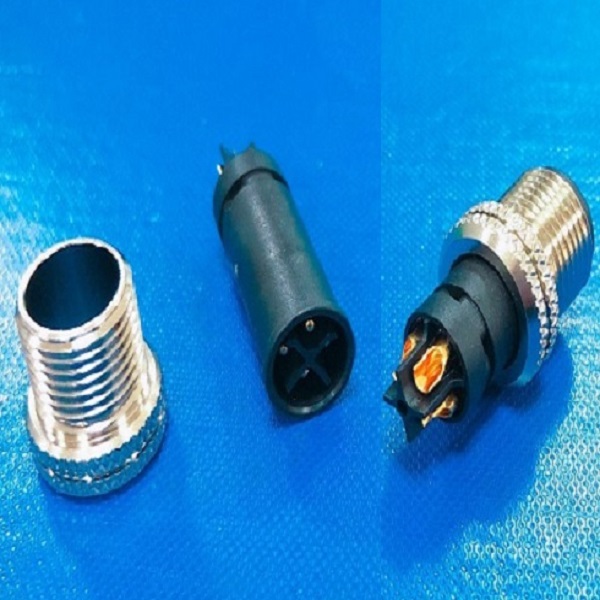

M12 S-code 4Pin Male Connector
M12 S-Code connectors are used for supplying power supply voltages to power applications. With an operating voltage of 630V they are capable of delivering 12 Amps through the connector.
The S-Code is available as a moulded connector, field attachable, and receptacle. They are sealed waterproof to IP68 for the moulded connectors and IP67 for the field wireable versions.
Item No. : WP-04M2-199-11
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Male Connector |
| Coding | S code |
| Orientation | Straight |
| Wire Termination | Soldering |
| Housing Material | PA66 UL94V-0, Black |
| Contact Material | Brass with gold plated under plate Nickel |
| Nut Material | Brass with Nickel plated |
| Rated Current | 12A |
| Rated Voltage | 630V |
| Waterproof Rating | IP67/IP68 |
| Operation Temperature | -40℃ ~ 105℃ |
