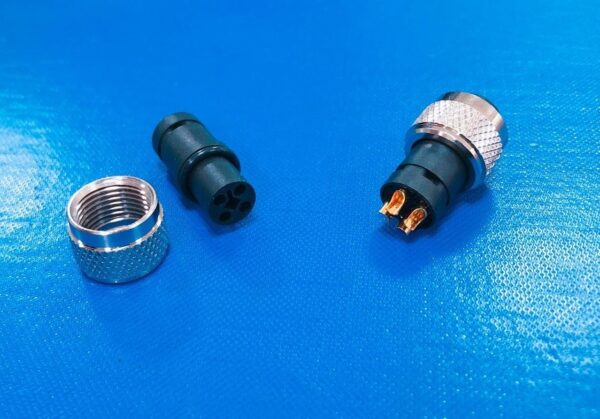

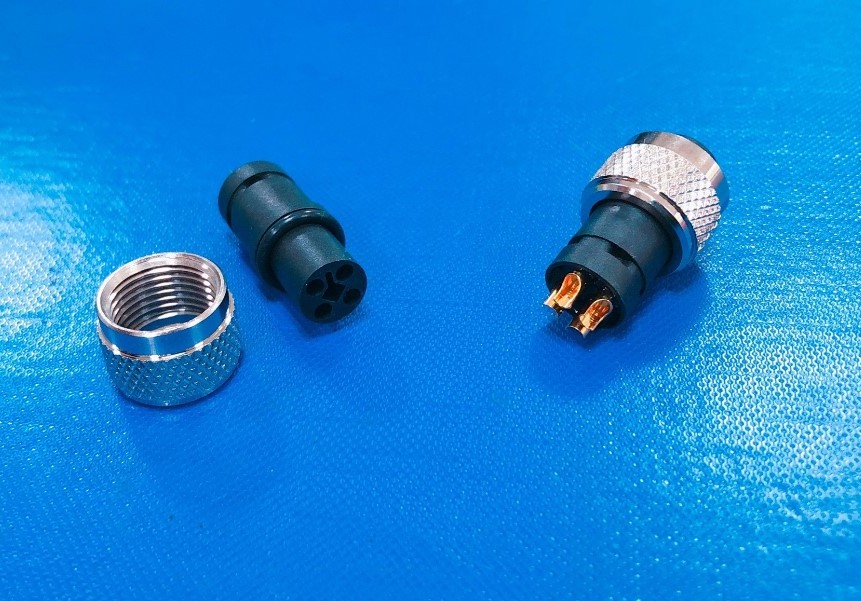

M12 T-code 4Pin Female Connector

M12 T-code connectors consist of a 16A current rating, a 60V DC  voltage rating, and a durable screw connection. The screw connection offers a high degree of protection, and the flexible design smoothes on-site assembly. T-coded connectors include Board- and Panel-Mount ConnectorsCable Connectors, and Cordsets.

Item No. : WP-04F2-252-11

Description

No. of Contacts 4 Pins
Connector Gender Female Connector
Coding T code
Orientation Straight
Wire Termination Soldering
Housing Material PA66 UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Nut Material Brass with Nickel plated
O-ring Material EPDM
Rated Current 12A
Rated Voltage 63V
Waterproof Rating IP67/IP68
Operation Temperature -40℃ ~ 105℃

Download pdf file
