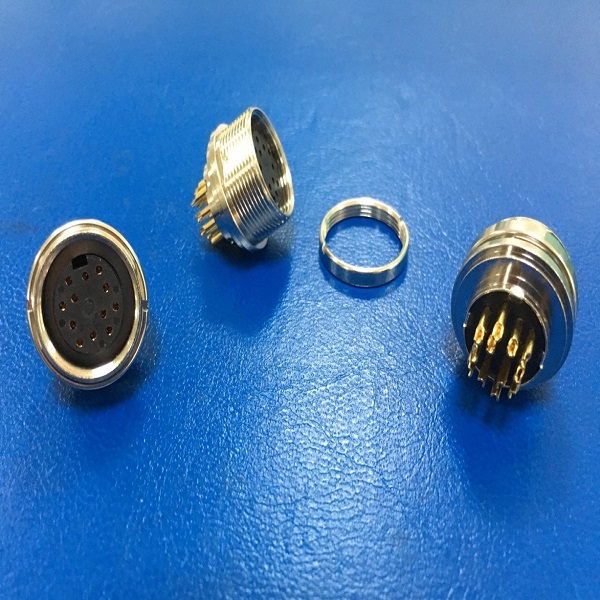

M16 12Pin Female Front Panel Mount Connector

Today’s M16 connectors are capable of accommodating from 3 to 24 contacts. They are mainly housed in metal bodies, with or without shielding from electromechanical interference (EMI), and providing international protection up to IP67 or IP68 for certain versions.

Item No.: DI-12F2-12-11

Features:

  • High pin count and protection up to IP68
  • Suitable for 5G rollout
  • Data transmission up to 10Gbits/s
  • Applications for communications and security systems

Description

No. of Contacts 12 Pins
Connector Gender Female Connector
Housing Material PA66 , Black
Contact Material Brass with gold flash
Shell Material Brass with Nickel plated
O-ring Material EPDM, Black
Nut Material Brass with Nickel Plated
Electrical Specification
Rated Current 3A
Rated Voltage 60V
Waterproof Rating IP68
Environmental Operation Temperature -40°C ~ 85°C

Download pdf file
