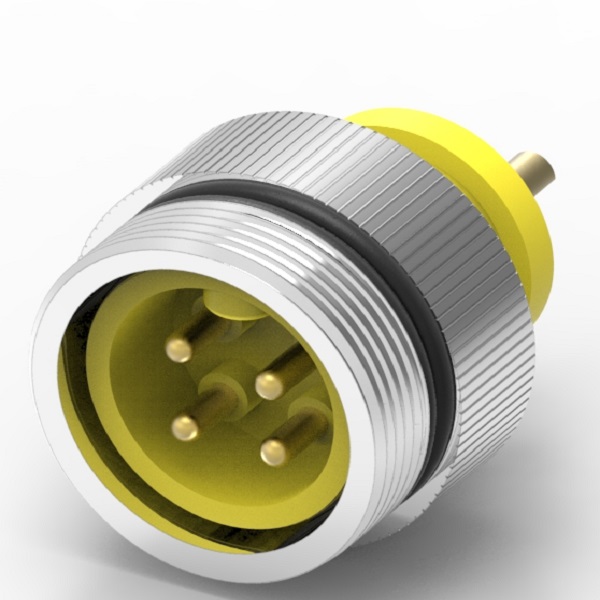

M23 4Pin Male Connector for Cable
The M23 refers to the thread type used in connecting the cable plug & receptacle, which is versatile due to its robust design, and the combination of power and signal pins built into the design. Our connectors are currently available in 3, 4, and 5 poles, with both straight, and right-angle Configurations and physically keyed to prevent wiring mishaps.
Item No. : WP-04M2-168-11
Description
The classic M23 power connector covers a huge range of applications. With a power transmission of up to 20A/250V, this connection system can handle a lot more challenges. The range includes numerous casing designs: Cable connectors, coupling connectors, device connectors, and angle connectors. The Connectors are available as screw plugs, or with quick release.
| No. of Contacts | 4 Pins |
| Connector Gender | Male Connector |
| Orientation | Straight |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold plated under plate Nickel |
| Nut Material | Brass with Nickel plated |
| O-ring Material | NBR |
| Rated Current | 20A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -20℃ ~ 85℃ |
