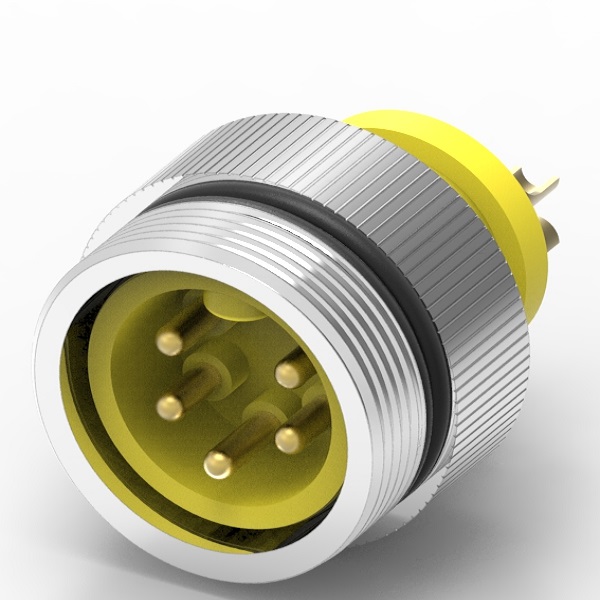

M23 5Pin Male Connector for Cable

The classic M23 power connector covers a huge range of applications. With a power transmission of up to 20A/250V, this connection system can handle a lot more challenges. The range includes numerous casing designs: Cable connectors, coupling connectors, device connectors, and angle connectors. The Connectors are available as screw plugs, or with quick release.

Item No. : WP-05M2-54

Description

The classic M23 power connector covers a huge range of applications. With a power transmission of up to 20A/250V, this connection system can handle a lot more challenges. The range includes numerous casing designs: Cable connectors, coupling connectors, device connectors, and angle connectors. The Connectors are available as screw plugs, or with quick release.

No. of Contacts 5 Pins
Connector Gender Male Connector
Orientation Straight
Housing Material PBT UL94V-0, Black
Contact Material Brass with gold plated under plate Nickel
Nut Material Brass with Nickel plated
O-ring Material NBR
Rated Current 20A
Rated Voltage 125V
Waterproof Rating IP67
Operation Temperature -20℃ ~ 85℃
