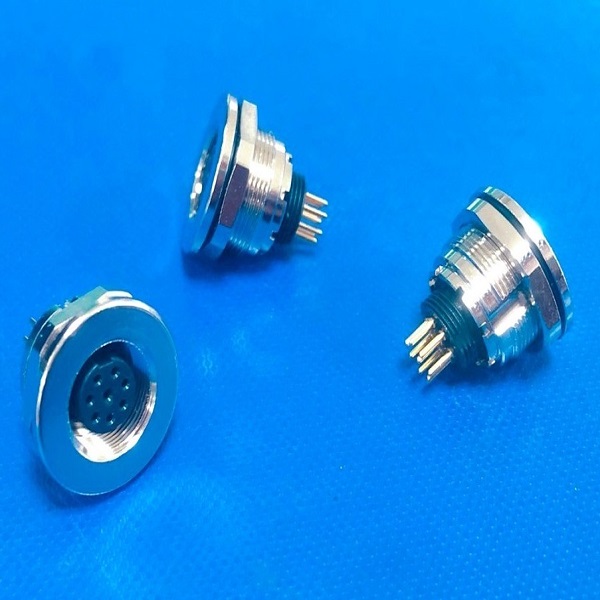

M9 8Pin Female Rear Panel Mount Connector
This M9 female panel mount connector has a voltage rating of 125VAC and a current rating of up to 1A per contact.
Panel plugs and sockets feature a keying groove for anti-rotation so they may be either mounted into the appropriate panel hole or mounted straight into a 12mm hole (with no key tongue) and fixed with the flange plate kit.
Item No. : WP-08F3-18-11
Features and Benefits :
- Control systems
- Electrical equipment
- Power distribution
Description
| No. of Contacts | 8 Pins |
| Connector Gender | Female Connector |
| Orientation | Straight |
| Housing Material | PA UL94V-0, Black |
| Contact Material | Brass with gold flash |
| Nut Material | Brass with Nickel plated |
| Shell Material | Brass with Nickel plated |
| O-ring A Material | Black Silicone |
| O-ring B Material | EPDM |
| Rated Current(40℃) | 1A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
